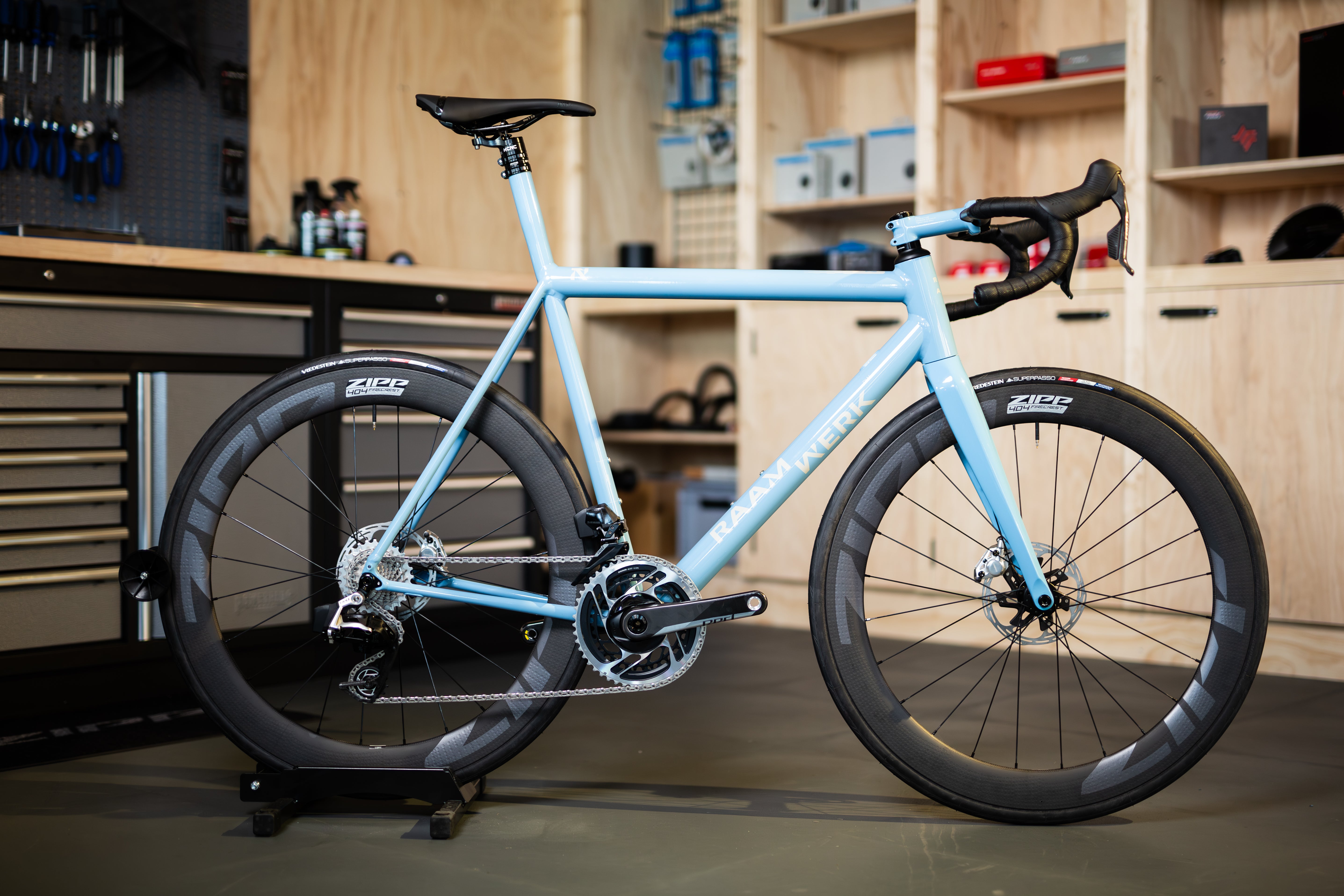

Sram Red AXS, ZIPP 404 Firecrest

Raamwerk Disc RD8

€7.800,00 EUR
€7.800,00 EUR
Tax included.

Ride the New Sram Red AXS groupset with this great pre-configured build up with a Zipp 404 Firecrest wheelset and the new SL80 handlebar. What else can you wish for?

Price includes;

  • Quarq spider powermeter
  • Hammerhead Karoo
  • New Zipp SL80 handlebar
Size:
Color: Bright Blue
An performance all-rounder

Developed for your next race, group-ride or all-day adventure

When we state that, we mean that we developed the frameset for every day life, so it fits in your lifestyle, and is as well a trainings bike as it is your go-to choice for race day!

Climbing, cornering and sprints - Raamwerk does it all. Our aluminum bicycle feels equally at home in a competition as on an all day adventure.

Pre-configured bike

1
Frameset
Raamwerk Parallel AL7005
2
Groupset

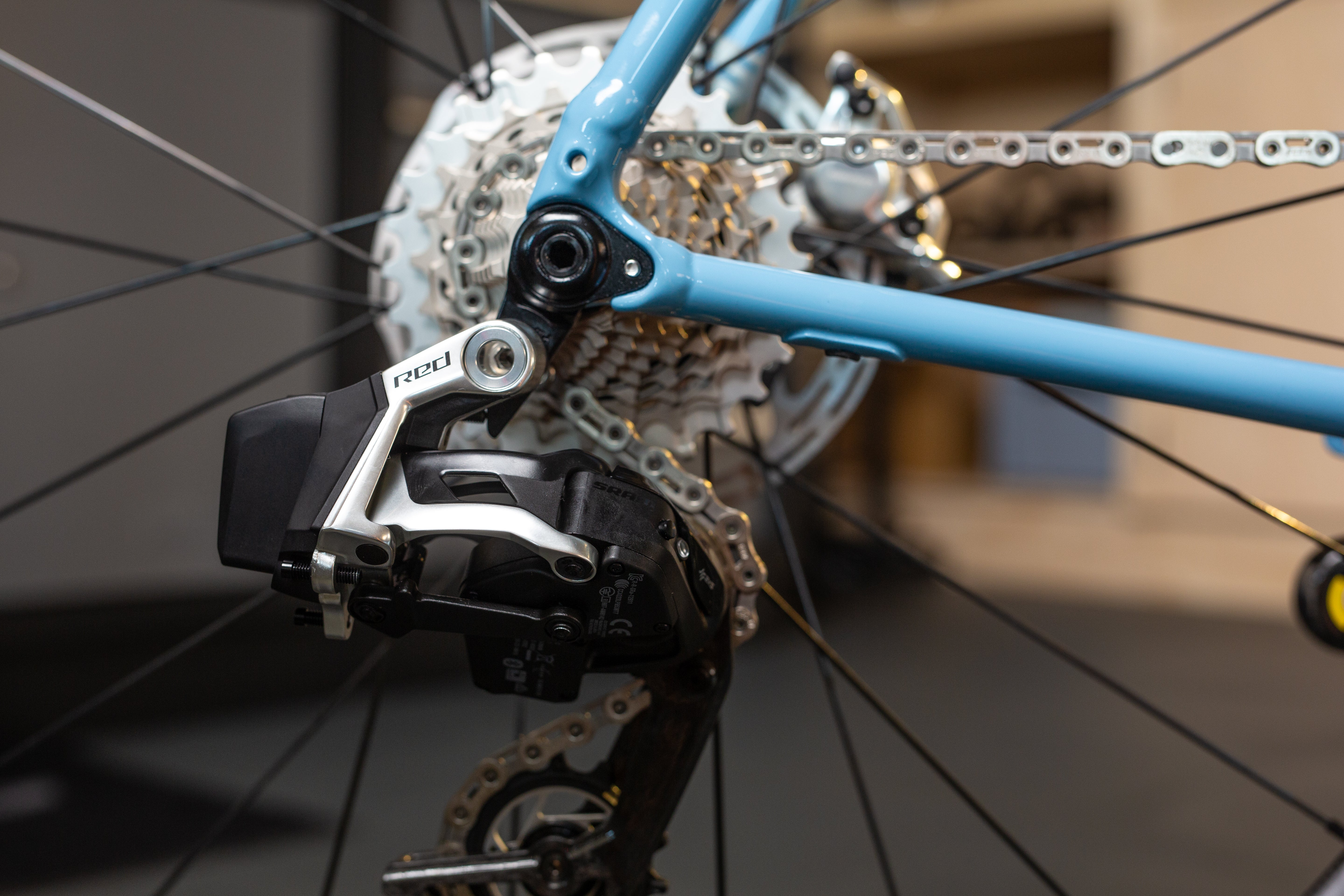

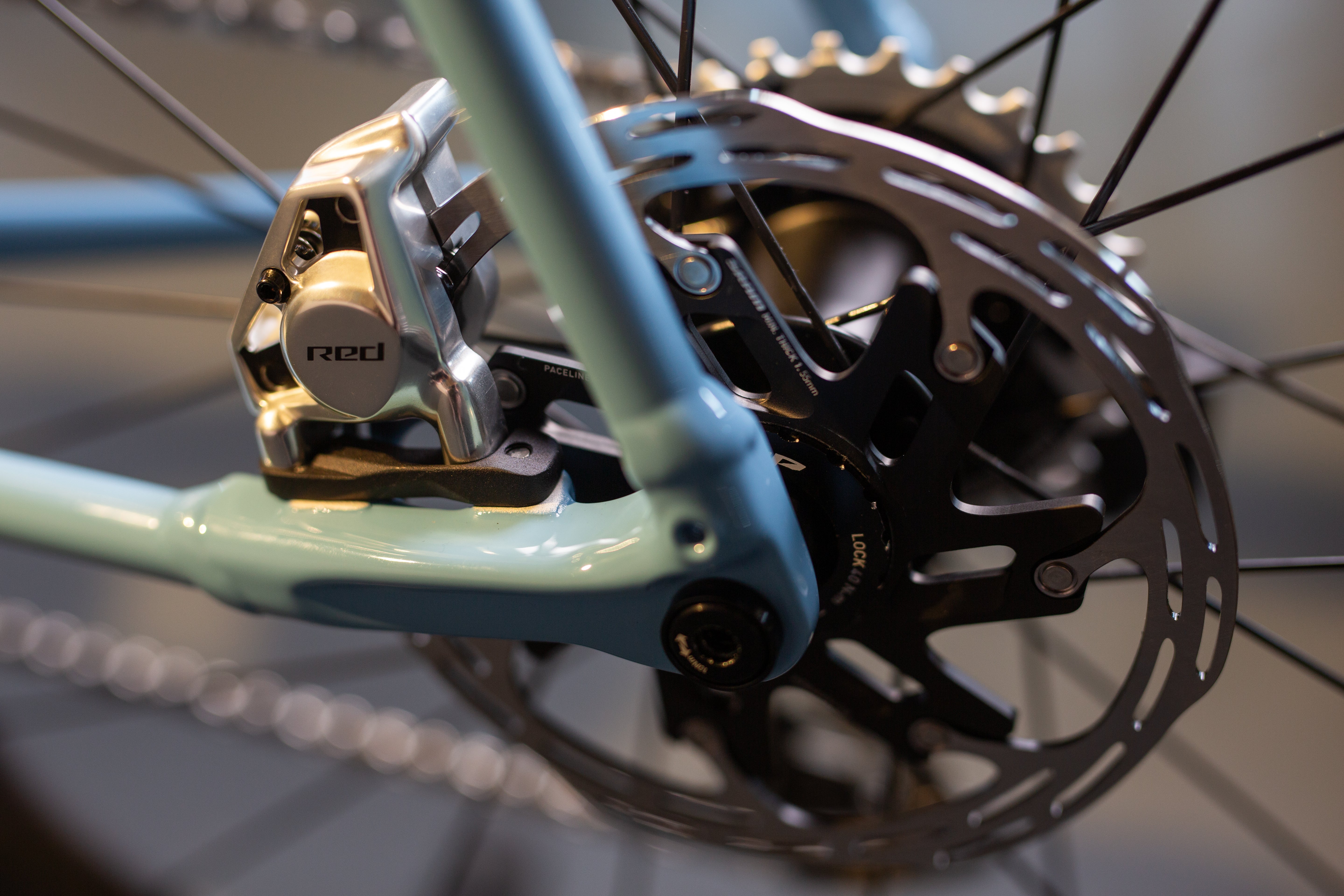

Sram Red AXS 2x12
3
Wheelset
ZIPP 404 Firecrest
4
Handlebar
Zipp SL80 Aero - [38 - 42 width, choice is yours]
5
Stem
Raamwerk aluminium length between 90 - 120 mm
6
Tyres
Vredestein Superpasso 28mm
7
Tubes
Tubolito Road with black valve
8
Handlebar tape
Raamwerk Black Grip

Optional upgrades

1
Water bottle cage
2x Elite Custom Road+ (+€32) or 2x Zipp Alumina (+€60) or 2x Zipp SL Speed (+€130)
2
Wheelset upgrade
Zipp NSW 343/454 or Scope Artech (+ €1500)
3
Powermeter upgrade
Already included
4
Out-front mount
Raamwerk AL Stem out-front mount (€...)
5
Saddle
Let us know what you prefer
An performance all-rounder
Geometry
Frame size → XS S M M/L L XL
Body length (roughly) 160 168 175 180 185 192
A Stack 494 509 525 544 565 589
B Reach 375 378 388 398 403 404
C Seat tube angle 75 74 73.5 73.5 73 72.5
D Seat tube C-C 450 490 510 530 550 580
E Seat tube C-T* 750 790 810 830 850 880
F Top tube (efffective) 505 525 545 560 575 590
G Head tube angle 71 72.5 73 73 73.5 73.5
H Head tube 110 120 135 155 175 200
I BB drop 68 68 68 68 68 68
J Wheel base 972 966 978 993 999 1008
K Stand-over height 741 777 795 815 832 860
L Fork offset 45 45 45 45 45 45
M Fork length 375 375 375 375 375 375
N Trail 70 61 58 58 55 54

Raamwerk defines state-of-the-art for aluminium race bikes

Build

It's a joy to be dreaming about the parts to go on your new bike. We made the Road Race frameset in such a way, that all common road groupsets, wheels and parts fit onto the frameset.

Mechanical, Electronic, Hydraulic or Wireless. All are possible for both shifting and braking on rim- and discbrake. The choice is yours!

Ride

A Raamwerk Road Frameset has a high lateral stiffness. We designed it this way, so you will feel confident when cornering. We are convinced this confidence makes you faster and let's you have more fun when riding.

The geometry is chosen in such a way that you can race your local crit, but are also able to go out on an all day adventure.

Upgrade

Tinkering on your bike is fun. Making it better, faster or better suitable for you is part of the cycling hobby. We make it as simple as possible, with open standards and options to integrate, but no need. It's your choice.

Re-use

We love aluminium as a material for frames for a number of reasons. One of them is the possibility to re-use it. Aluminium can relatively easily be melted and re-used of premium quality aluminium.


Not the first thing you think about when buying a new bike, but we better take care of resources on our planet.

The complete package

What's included

Complete bike

The pre-configured bike will be build to specifics in the list you ordered, among with the preferred specs as discussed with the team. Including the upgrades that were discussed.

Crash replacement service

Your frameset comes with a crash replacement program, so if you do crash and your bike has taken a beating we will help you to get back on the bike as soon as possible. Eligible cases will receive a 50% discount on a new frameset.

ISP removal service

The frame comes with a ISP (integrated seat post), however the frame is ready to have the ISP removed and fit a 27,2 seat post.

In case of a immediate ISP removal, you will receive the frameset without the ISP. This can not be undone.

Build it yourself

All information you need to build

As we know that building your dream bike yourself is part of the fun, we support you all the way. From availability of framesets and parts to all technical details accessible, right here on our website, if that isn't enough, we will help you through our customer support when needed.
