Frameset Parallel Disc Deep Space

€1.950,00 EUR
€1.950,00 EUR
Tax included.

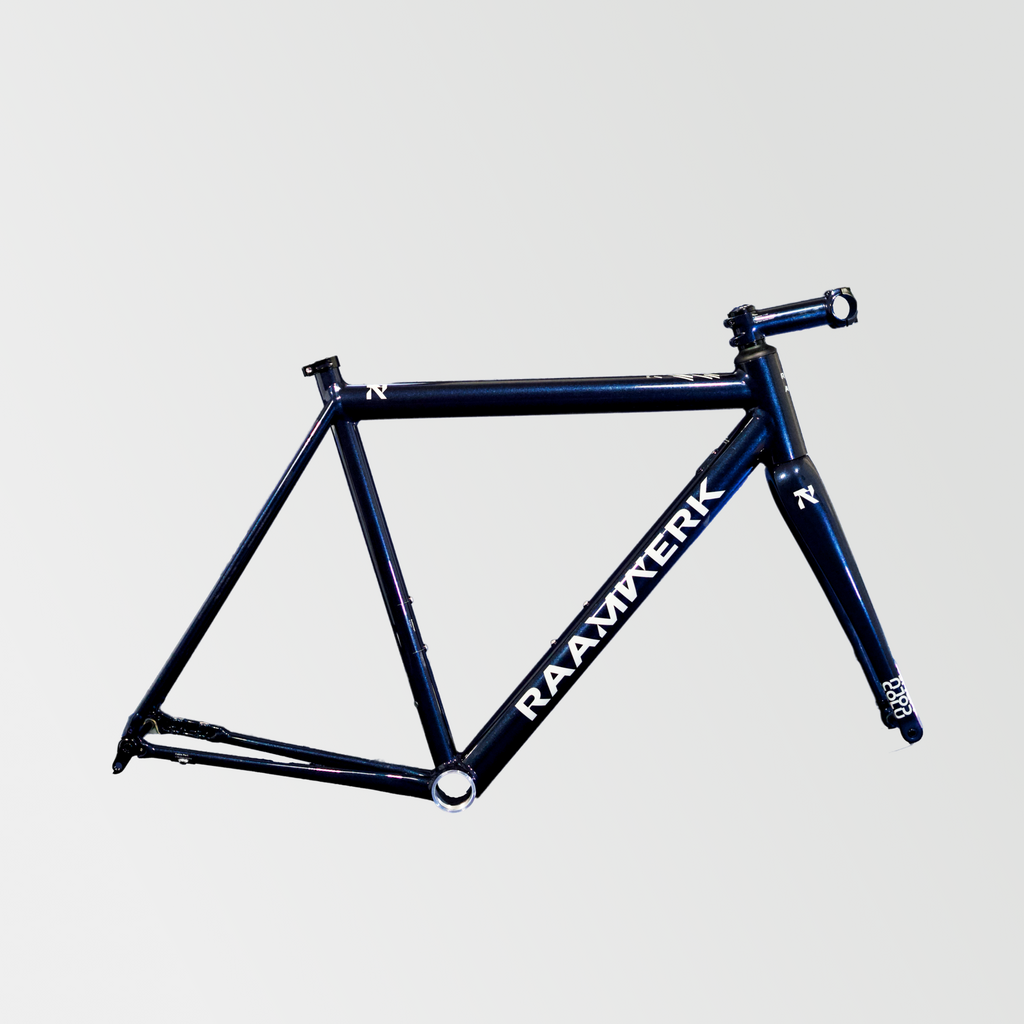

The second generation of the Parallel frameset, with slight iterations in geometry, an updated front fork, seatpost and an all new colour way!

A frameset that can do it all: breeze through corners, make others jealous during group rides, and accompany you on an all-day adventure. Plus, you have the flexibility to build it with the parts of your preference, as this frame is compatible with all common bike components. With its deep metallic blue color, rest assured it will catch some eyes.

We’ve curated the framesets with parts that we’ve noticed are most commonly used. If you need or prefer any of these parts in a different setup, we’d be happy to help. Just reach out and let us know your preference.

Size:
Cable integration options

Our frames come as standard with a semi-integrated cable guide pack: a semi-integrated headset on disc brake versions and a non-integrated headset on rim brake frames.

We include the parts to set up your bike with a SRAM AXS groupset. You can find more details about these parts and integration options in the page below. If you prefer other parts, don’t be shy – let us know!

Cable routing options
Stem

The color of the stem and fork matches and depends on the frame color.

- XS and S-sized frames come standard with a 90mm stem
- M and M/L-sized frames come standard with a 100mm stem
- L and XL-sized frames come with a 110mm stem

We understand that stem length is very personal. If you prefer a different length, we’re happy to accommodate that for you.

Cutting length

The fork needs to be cut to your specific needs. As standard, we send them uncut. This means the fork steerer tube is 300mm long.

For the fork, this means it sticks out of the frame more on smaller frames than on larger ones. If you prefer this to be cut, just let us know – we’d be happy to do that for you.
An performance all-rounder

Developed for your next race, group-ride or all-day adventure

When we state that, we mean that we developed the frameset for every day life, so it fits in your lifestyle, and is as well a trainings bike as it is your go-to choice for race day!

Climbing, cornering and sprints - Raamwerk does it all. Our aluminum frameset feels equally at home in a competition as on an all day adventure.

Specs list

1
Frame
Made of 7005 series Aluminium. Tubes are double butted. Frame is smooth welded and after welding had a T4 and T6 Heat treatment and got shot peened.
2

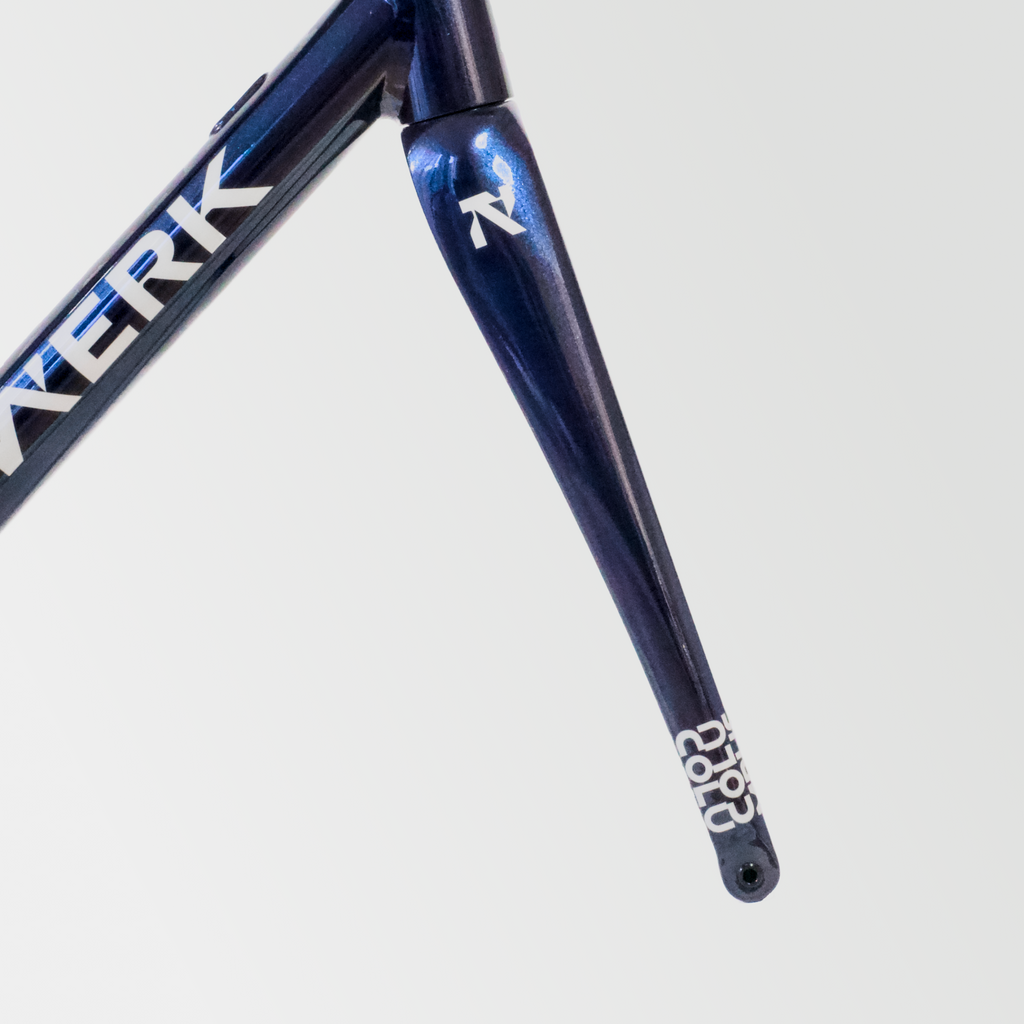

Fork
Columbus Futura Disc Integrated. Full carbon fibre. 1,5 to 1,125 inch tapered steered. Flat mount brakes, made for 140 or 160mm rotors. Internal cable routing.
3
Headtube
Made for Integrated headsets, IS52 bearing size. This results in the option to integrate cable's and brake hoses through the headtube and upper bearing.
4

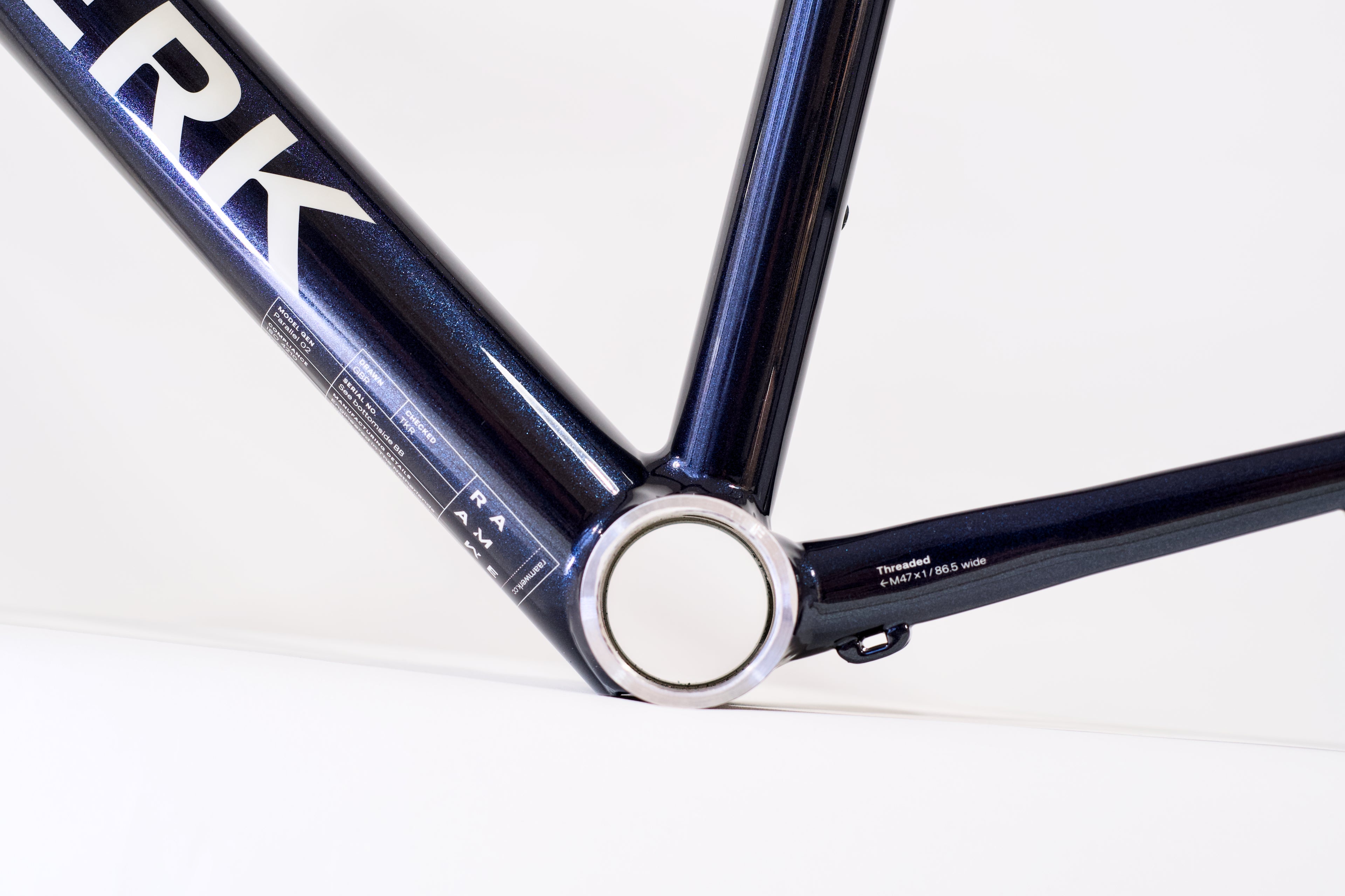

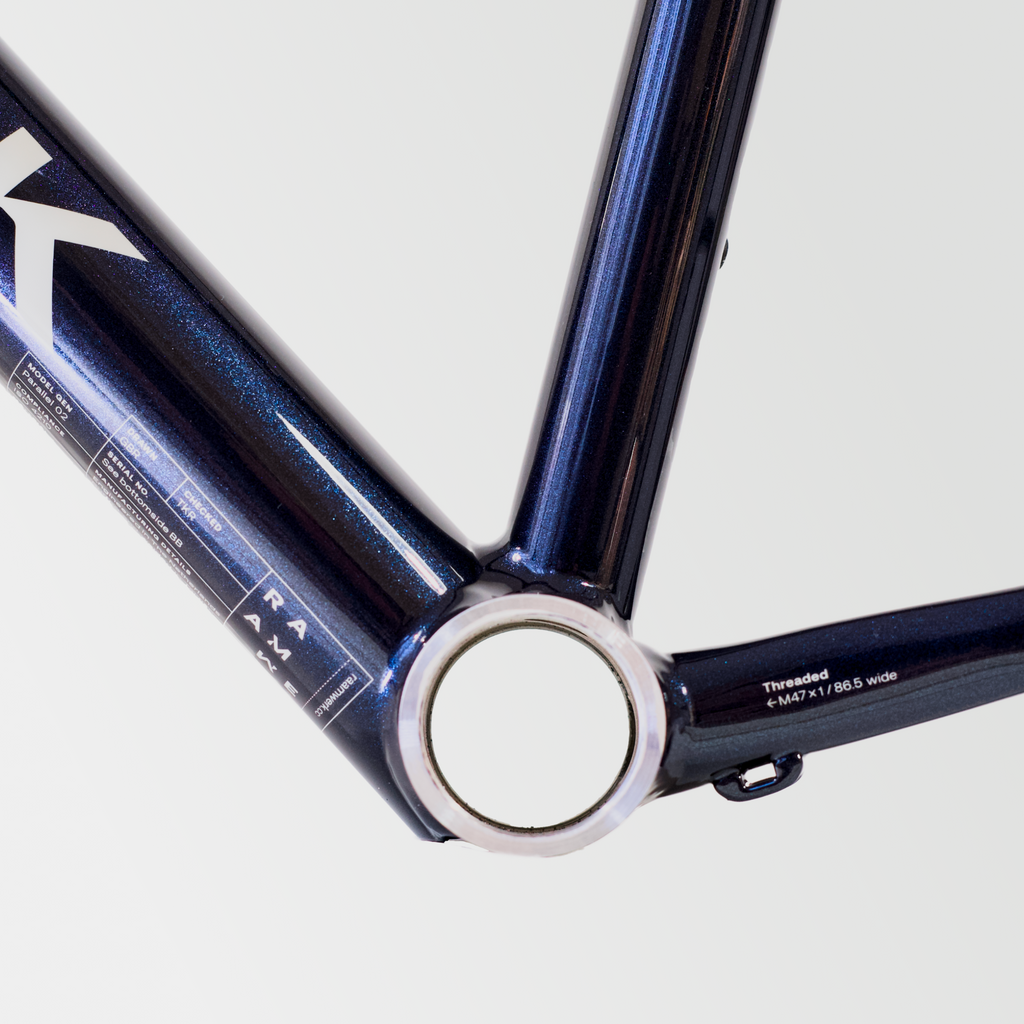

Bottom Bracket
T47 threaded bottom bracket. 86,5mm wide, made for internal bearings. BB's made for 85,5 or 86mm also fit. (Yes, these are different 'standards')
5
Tyre clearance
Designed for 28mm, but easily fits 25 to 30mm. Other sizes might fit, depending on rim and tyre combination.
6
Wheel size
28 inch or 700c.
7
Front axle
12x100mm thru-axle. Axle is 120mm long with M12x1.5 thread.
8

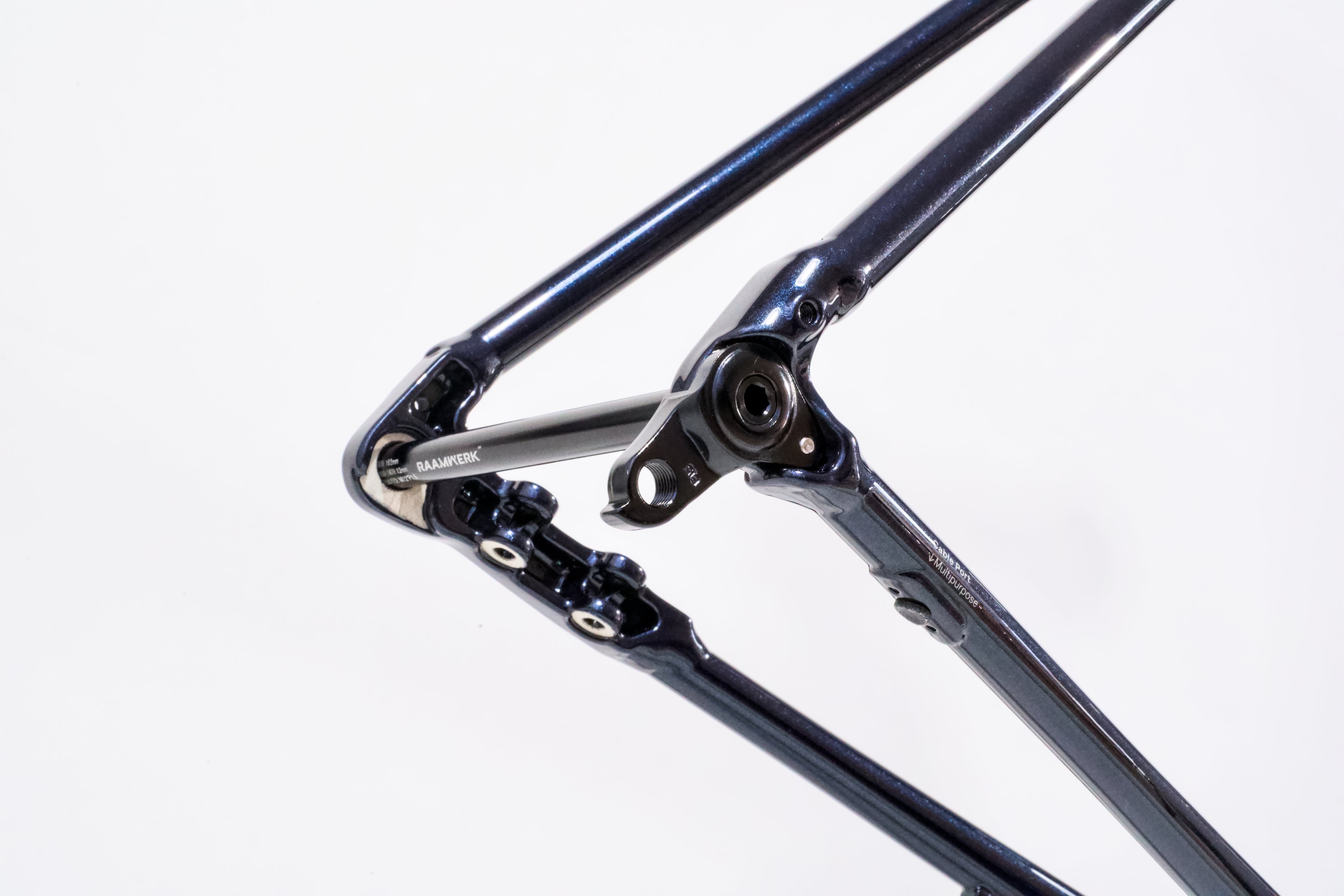

Rear axle
12x142mm thru-axle. Axle is 162mm long with M12x1.5 thread.
9

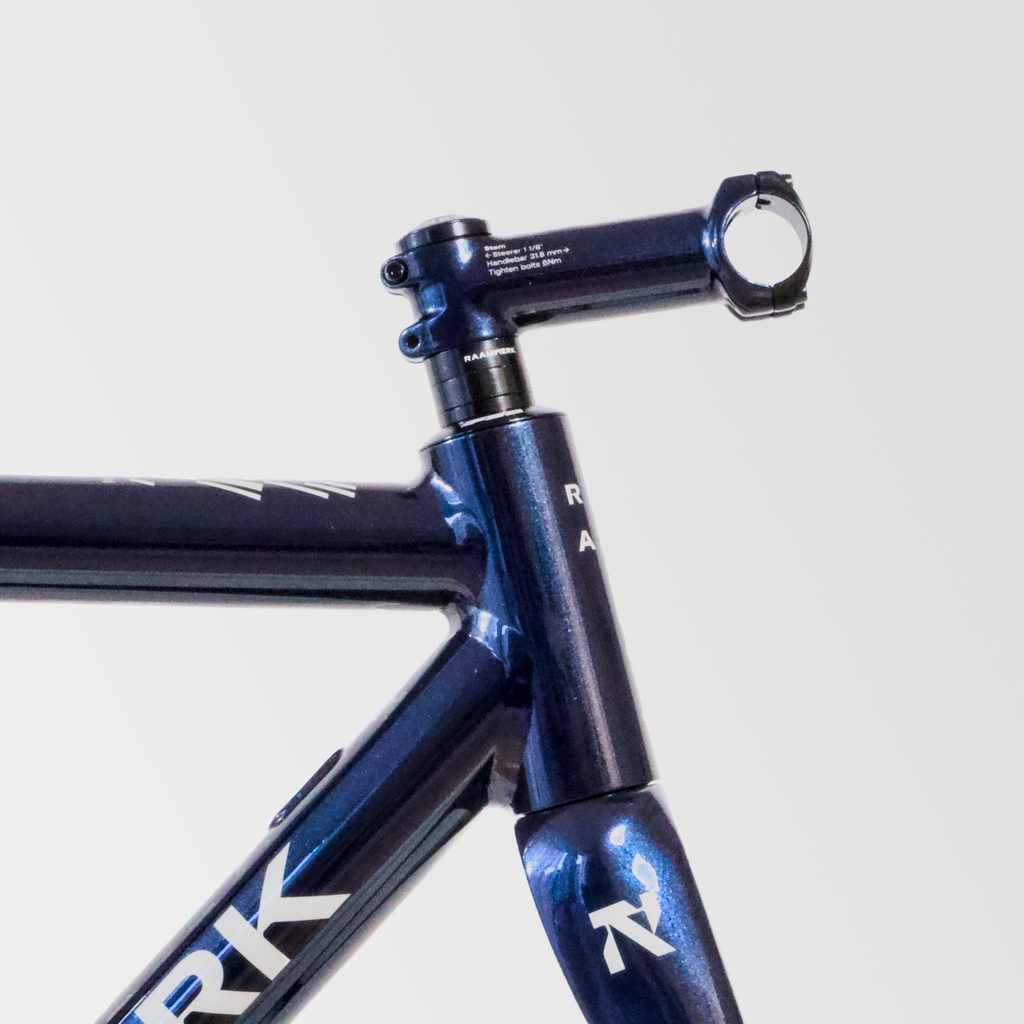

Stem
Raamwerk aluminium stem in matching color. Made for optional out-front mount, to mount your Garmin, Wahoo, Karoo, Action Camera, front light, and/or bell.
10
Seatpost
Fully integrated. With 34.9mm seat mast (included). Up to 40mm of adjustabillity in height. Removing the Integrated Seat Post is also possible, in that case you can mount a 27.2mm seat post.
An performance all-rounder
Geometry
Frame size → XS S M M/L L XL
Body length (roughly) 160 168 175 180 185 192
A Stack 494 509 525 544 565 589
B Reach 375 378 388 398 403 404
C Seat tube angle 75 74 73.5 73.5 73 72.5
D Seat tube C-C 450 490 510 530 550 580
E Seat tube C-T* 750 790 810 830 850 880
F Top tube (efffective) 505 525 545 560 575 590
G Head tube angle 71 72.5 73 73 73.5 73.5
H Head tube 110 120 135 155 175 200
I BB drop 68 68 68 68 68 68
J Wheel base 972 966 978 993 999 1008
K Stand-over height 741 777 795 815 832 860
L Fork offset 45 45 45 45 45 45
M Fork length 375 375 375 375 375 375
N Trail 70 61 58 58 55 54

Raamwerk defines state-of-the-art for aluminium race bikes

Build

It's a joy to be dreaming about the parts to go on your new bike. We made the Road Race frameset in such a way, that all common road groupsets, wheels and parts fit onto the frameset.

Mechanical, Electronic, Hydraulic or Wireless. All are possible for both shifting and braking on rim- and discbrake. The choice is yours!

Ride

A Raamwerk Road Frameset has a high lateral stiffness. We designed it this way, so you will feel confident when cornering. We are convinced this confidence makes you faster and let's you have more fun when riding.

The geometry is chosen in such a way that you can race your local crit, but are also able to go out on an all day adventure.

Upgrade

Tinkering on your bike is fun. Making it better, faster or better suitable for you is part of the cycling hobby. We make it as simple as possible, with open standards and options to integrate, but no need. It's your choice.

Re-use

We love aluminium as a material for frames for a number of reasons. One of them is the possibility to re-use it. Aluminium can relatively easily be melted and re-used of premium quality aluminium.


Not the first thing you think about when buying a new bike, but we better take care of resources on our planet.

The complete package

What's included

Frame

AL 7005, T4 and T6 heat treated, butted tubing and smooth welded in the color of your choice.

Fork

Carbon integrated headset, integrated cable routing optional, in the colour that fits in your frameset.

Headset

IS 52 bearings to your choice of cable routing (semi-integrated or fully integrated)

Spacers

Together with your frameset comes a set of 30 mm spacers. Two 10mm and two 5mm spacers.

Stem

A Raamwerk stem in matching colours to your frameset is included.

You will be asked what your preferred stem length will be, from 90, 100, 110 or 120 mm.

Integrated computer mount (optional)

With a different faceplate on the stem it is possible to mount our integrated computer mount so your handlebar will keep a clean look.

Seatmast

The ISP version of the frameset comes with a seatmast on top of your ISP. This comes in two versions, so you can chose for a 0mm setback or a 25mm setback version.

Derailleur hanger

The derailleur hanger will be delivered with your brand new frame, it won't come pre-installed as this makes the frame slightly bigger and more fragile during shipping.

Thru-axles

Raamwerk thru-axles for front- and rear wheel will be included as they are frame specific.

Crash replacment service

Your frameset comes with a crash replacement program*, so if you do crash and your bike has taken a beating we will help you to get back on the bike as soon as possible. Eligible cases will receive a 50% discount on a new frameset.

*after registration of the bike

Build it yourself

All information you need to build

As we know that building your dream bike yourself is part of the fun, we support you all the way. From availability of framesets and parts to all technical details accessible, right here on our website, if that isn't enough, we will help you through our customer support when needed.

Technical details
Be prepared right from the start

We've got the spares

See all
  • Derailleur hanger Derailleur hanger
    Raamwerk
    Parallel

    Derailleur hanger

    €15,00 EUR
    €15,00 EUR
    One of the especially useful functions of a derailleur hanger is to break preferably before the expensive parts do. T...
  • Spacer set
    Raamwerk
    Spare parts

    Spacer set

    €5,00 EUR
    €5,00 EUR
    Not a sexy product, but you need them anyway. These spacer are made of aluminium and come in 2 versions 5 mm high and...
  • Seatpost Clamp
    Raamwerk
    Spare parts

    Seatpost Clamp

    €12,00 EUR
    €12,00 EUR

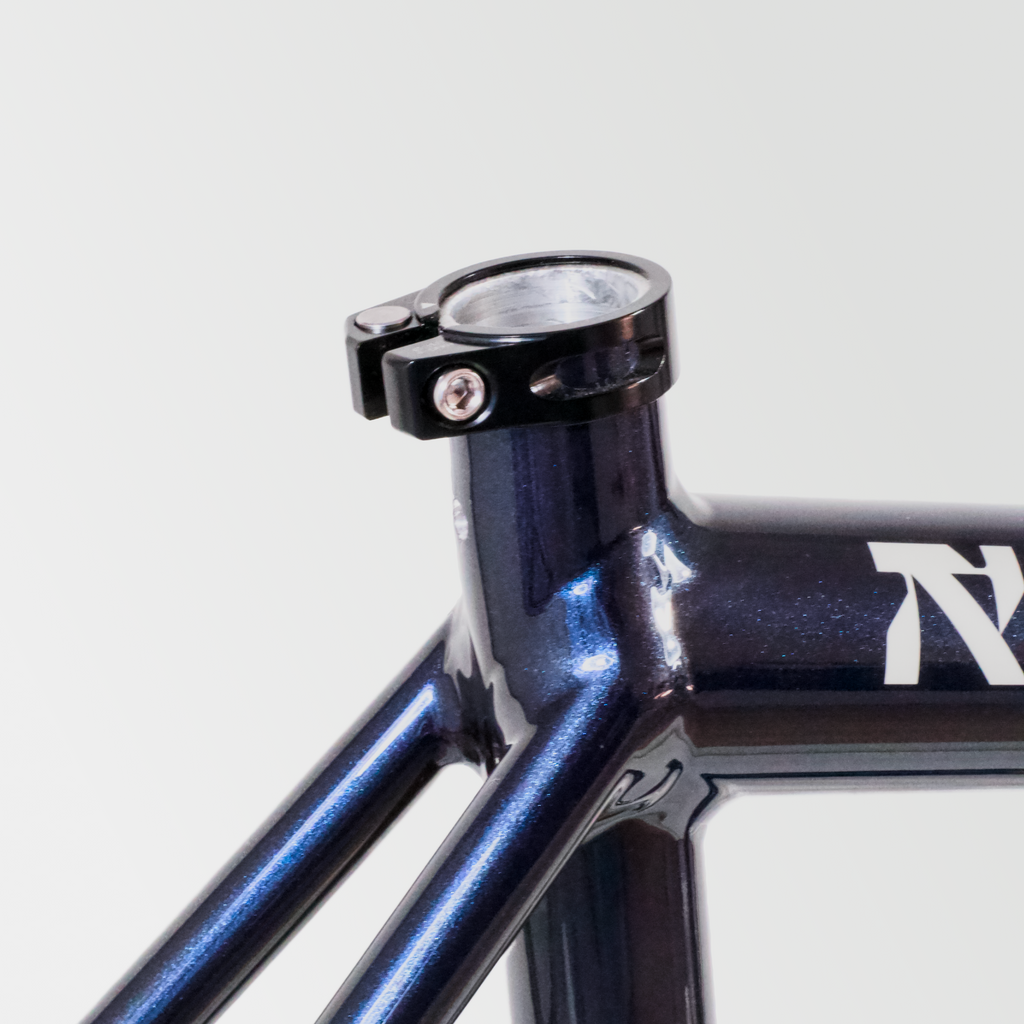

    Don't like the integrated seatpost? you can always cut it off and use this seatclamp to mount a traditional 27,2 seat...
