Raamwerk

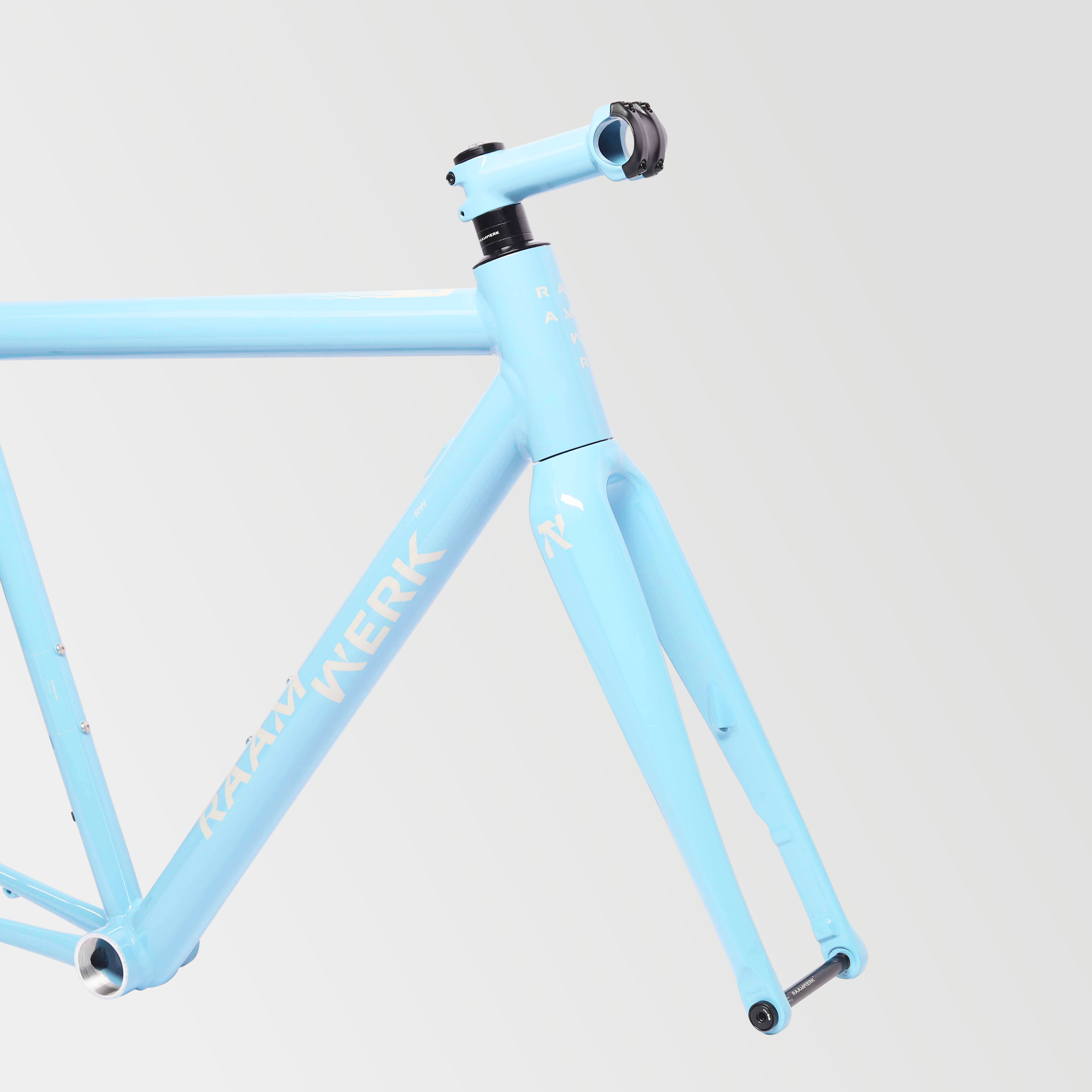

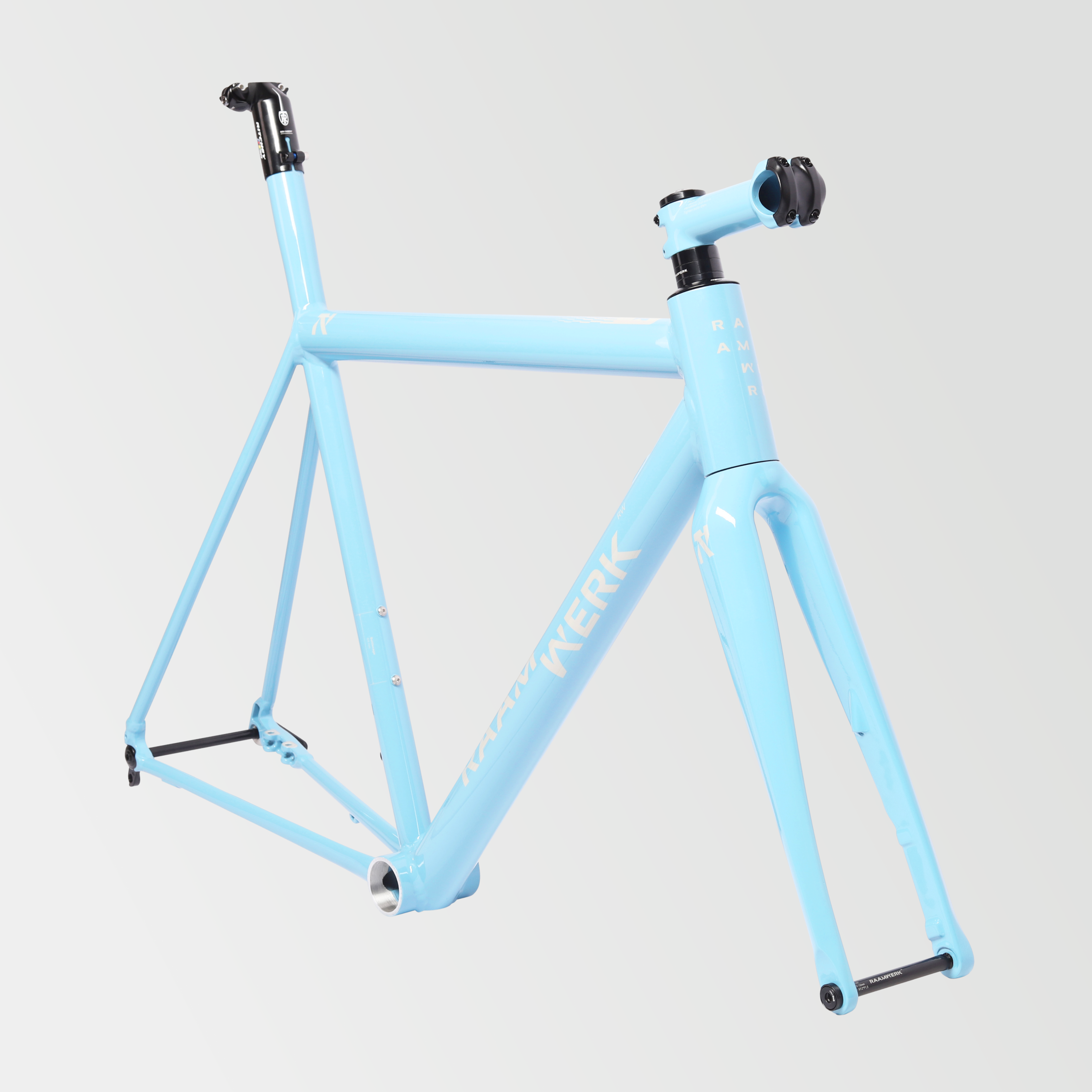

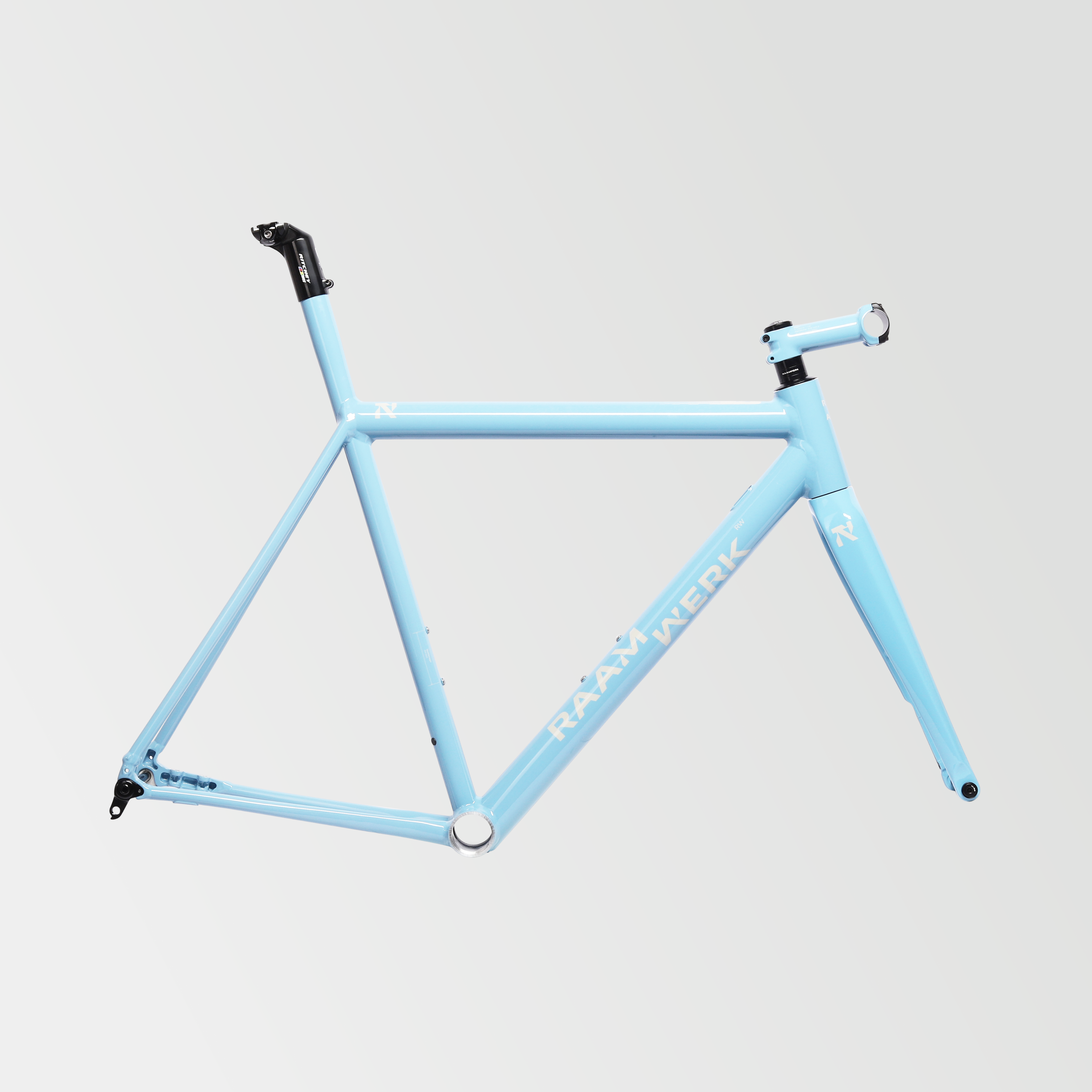

Frameset Road Disc Bright Blue

€1.950,00 EUR
€1.950,00 EUR
Tax included.

A frameset that can do it all: breeze through corners, make others jealous during group rides, and accompany you on an all-day adventure. Plus, you have the flexibility to build it with the parts of your preference, as this frame is compatible with all common bike components. With its vibrant bright blue color, rest assured it will catch some eyes.

Our team will reach out to make sure your frameset is how you like it. So we would go over details like stem length, cable route sets and bottom bracket options before your frameset is shipped.

Size:
Headset cable routing:
Shifting cable options:
Headset cable integration options

Semi integrated cables
We provide a headset where the cables can enter the frame below the stem. Raamwerk stem is included in matching colour.

Fully integrated cables
The frame is prepared to accomodate the cables fully integrated. Stem and headset are not included in the frameset.

Braking options

Disc brakes are hydraulic, rim brakes are mechanical. If you have/are planning for a different setup, send us a message and we’ll hook you up with the correct parts to mount it into your frames.

An performance all-rounder

Developed for your next race, group-ride or all-day adventure

When we state that, we mean that we developed the frameset for every day life, so it fits in your lifestyle, and is as well a trainings bike as it is your go-to choice for race day!

Climbing, cornering and sprints - Raamwerk does it all. Our aluminum frameset feels equally at home in a competition as on an all day adventure.

Specs list

1
Frame
Made of 7005 series Aluminium. Tubes are double butted. Frame is smooth welded and after welding had a T4 and T6 Heat treatment and got shot peened.
2
Fork
Full carbon fibre. 1.5 inch at the bottom, tapered to 1.125 inch at the top. Flat mount disc mount, for 140 or 160mm rotors. 300mm long steerer tube. No other mounting points.
3

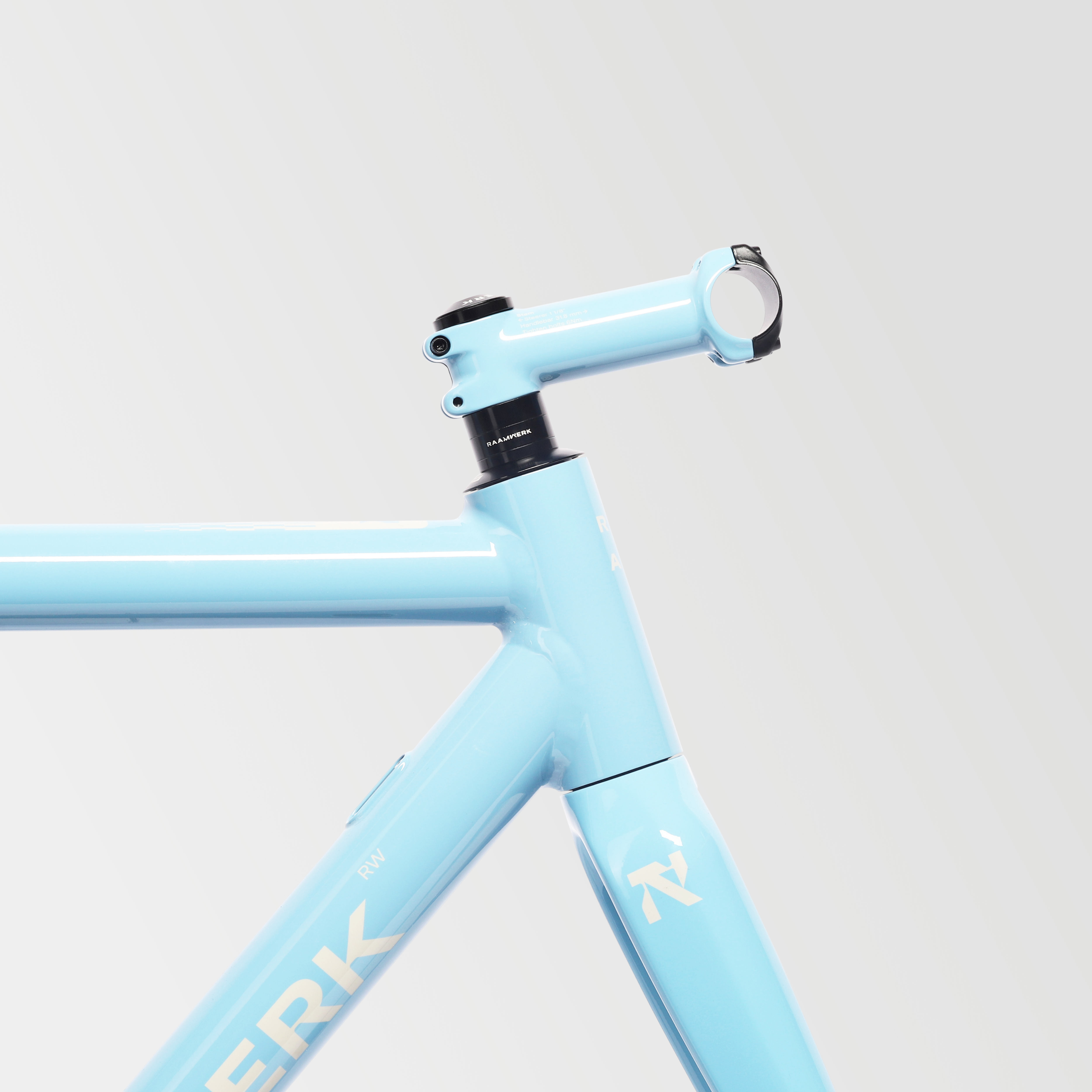

Headtube
Made for Integrated headsets, IS52 bearing size. This results in the option to integrate cable's and brake hoses through the headtube and upper bearing.
4

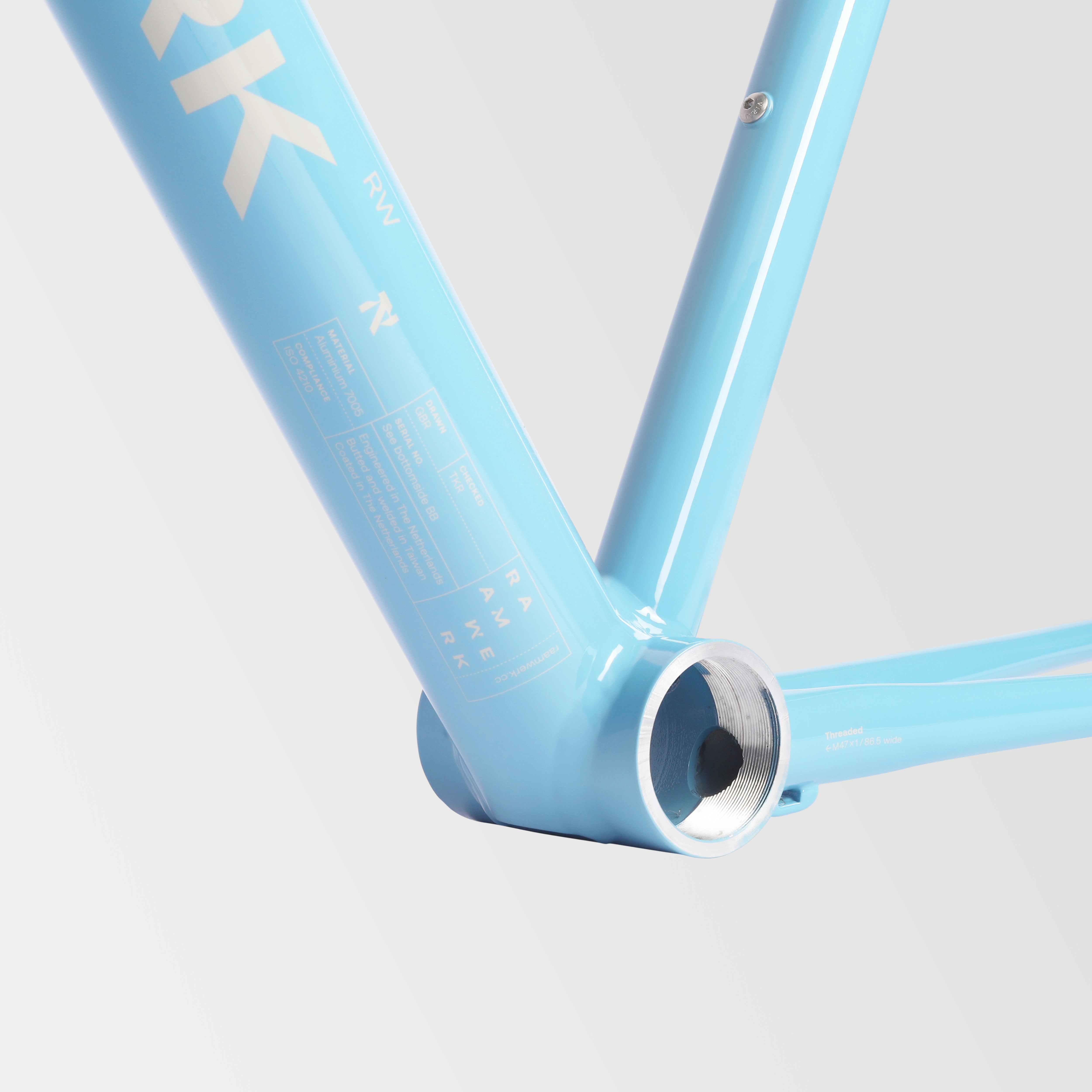

Bottom Bracket
T47 threaded bottom bracket. 86,5mm wide, made for internal bearings. BB's made for 85,5 or 86mm also fit. (Yes, these are different 'standards')
5
Tyre clearance
Designed for 28mm, but easily fits 25 to 30mm. Other sizes might fit, depending on rim and tyre combination.
6
Wheel size
28 inch or 700c.
7
Front axle
12x100mm thru-axle. Axle is 118mm long with M12x1.5 thread.
8
Rear axle
12x142mm thru-axle. Axle is 162mm long with M12x1.5 thread.
9
Stem
Raamwerk aluminium stem in matching color. Made for optional out-front mount, to mount your Garmin, Wahoo, Karoo, Action Camera, front light, and/or bell.
10
Seatpost
Fully integrated. With 34.9mm seat mast (included). Up to 40mm of adjustabillity in height. Removing the Integrated Seat Post is also possible, in that case you can mount a 27.2mm seat post.
An performance all-rounder
Geometry
Frame size → XS S M M/L L XL
Body length (roughly) 160 168 175 180 185 192
A Stack 494 509 525 544 565 589
B Reach 375 378 388 398 403 404
C Seat tube angle 75 74 73.5 73.5 73 72.5
D Seat tube C-C 450 490 510 530 550 580
E Seat tube C-T* 750 790 810 830 850 880
F Top tube (efffective) 505 525 545 560 575 590
G Head tube angle 71 72.5 73 73 73.5 73.5
H Head tube 110 120 135 155 175 200
I BB drop 68 68 68 68 68 68
J Wheel base 972 966 978 993 999 1008
K Stand-over height 741 777 795 815 832 860
L Fork offset 45 45 45 45 45 45
M Fork length 375 375 375 375 375 375
N Trail 70 61 58 58 55 54

Raamwerk defines state-of-the-art for aluminium race bikes

Build

It's a joy to be dreaming about the parts to go on your new bike. We made the Road Race frameset in such a way, that all common road groupsets, wheels and parts fit onto the frameset.

Mechanical, Electronic, Hydraulic or Wireless. All are possible for both shifting and braking on rim- and discbrake. The choice is yours!

Ride

A Raamwerk Road Frameset has a high lateral stiffness. We designed it this way, so you will feel confident when cornering. We are convinced this confidence makes you faster and let's you have more fun when riding.

The geometry is chosen in such a way that you can race your local crit, but are also able to go out on an all day adventure.

Upgrade

Tinkering on your bike is fun. Making it better, faster or better suitable for you is part of the cycling hobby. We make it as simple as possible, with open standards and options to integrate, but no need. It's your choice.

Re-use

We love aluminium as a material for frames for a number of reasons. One of them is the possibility to re-use it. Aluminium can relatively easily be melted and re-used of premium quality aluminium.


Not the first thing you think about when buying a new bike, but we better take care of resources on our planet.

The complete package

What's included

Frame

AL 7005, T4 and T6 heat treated, butted tubing and smooth welded in the color of your choice.

Fork

Carbon integrated headset, integrated cable routing optional, in the colour that fits in your frameset.

Headset

IS 52 bearings to your choice of cable routing (semi-integrated or fully integrated)

Spacers

Together with your frameset comes a set of 40 mm of spacers.

Stem

A Raamwerk stem in matching colours to your frameset is included.

You will be asked what your preferred stem length will be, from 90, 100, 110 or 120 mm.

Integrated computer mount (optional)

With a different faceplate on the stem it is possible to mount our integrated computer mount so your handlebar will keep a clean look.

Seatmast

The seatmast on top of your ISP comes in two versions, so you can chose for a 0mm setback or a 25mm setback version.

In case your a chosing for an immediate ISP removal a seatpost will come with the frameset.

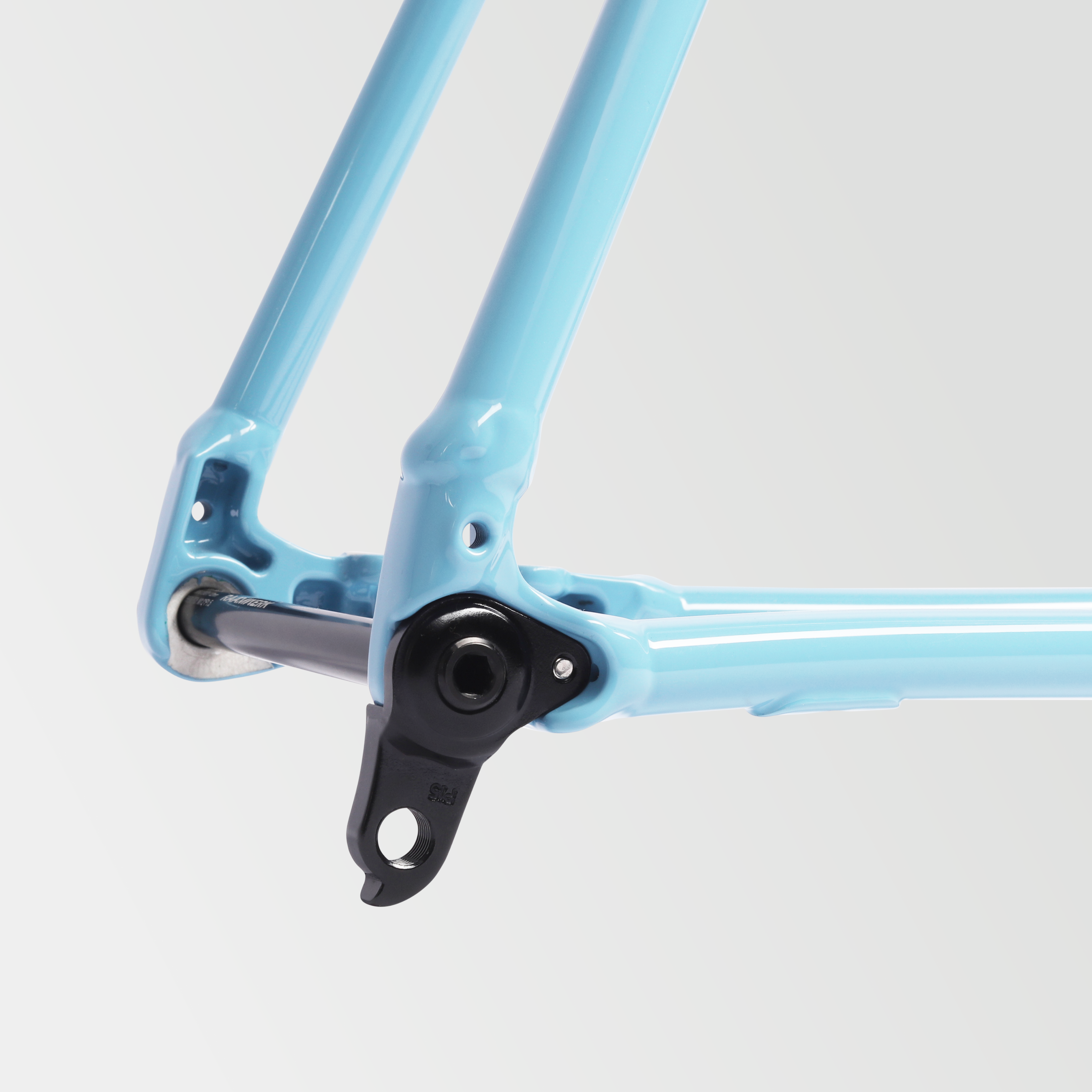

Derailleur hanger

The derailleur hanger will be delivered with your brand new frame, it won't come pre-installed as this makes the frame slightly bigger and more fragile during shipping.

Thru-axles

Raamwerk thru-axles for front- and rear wheel will be included as they are frame specific.

Crash replacment service

Your frameset comes with a crash replacement program*, so if you do crash and your bike has taken a beating we will help you to get back on the bike as soon as possible. Eligible cases will receive a 50% discount on a new frameset.

*after registration of the bike

ISP removal service (optional)

The frame comes with a ISP (integrated seat post), however the frame is ready to accommodate a 27,2 seat post.

In case of a immediate ISP removal, you will receive the frameset without the ISP. This can not be undone.

Build it yourself

All information you need to build

As we know that building your dream bike yourself is part of the fun, we support you all the way. From availability of framesets and parts to all technical details accessible, right here on our website, if that isn't enough, we will help you through our customer support when needed.
