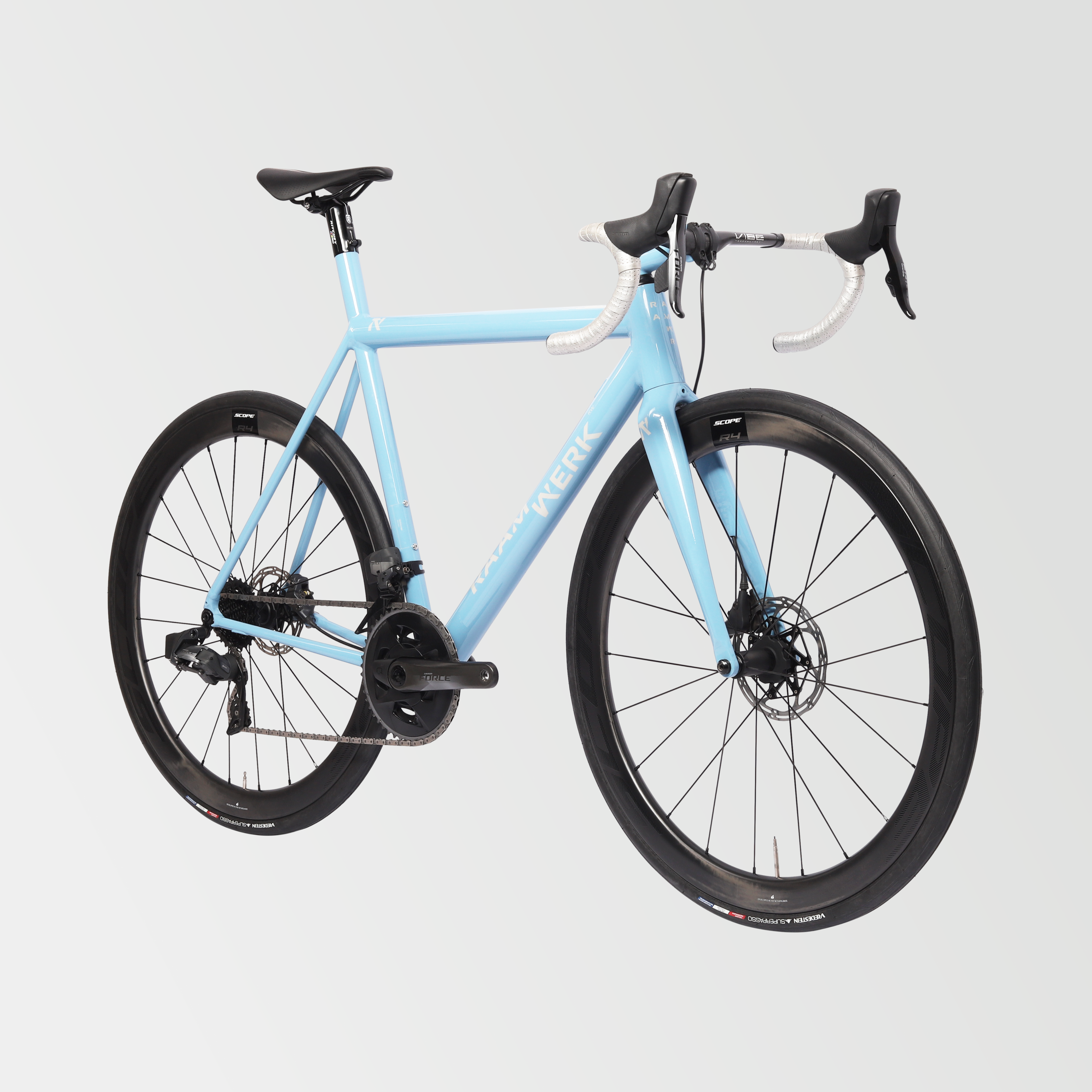

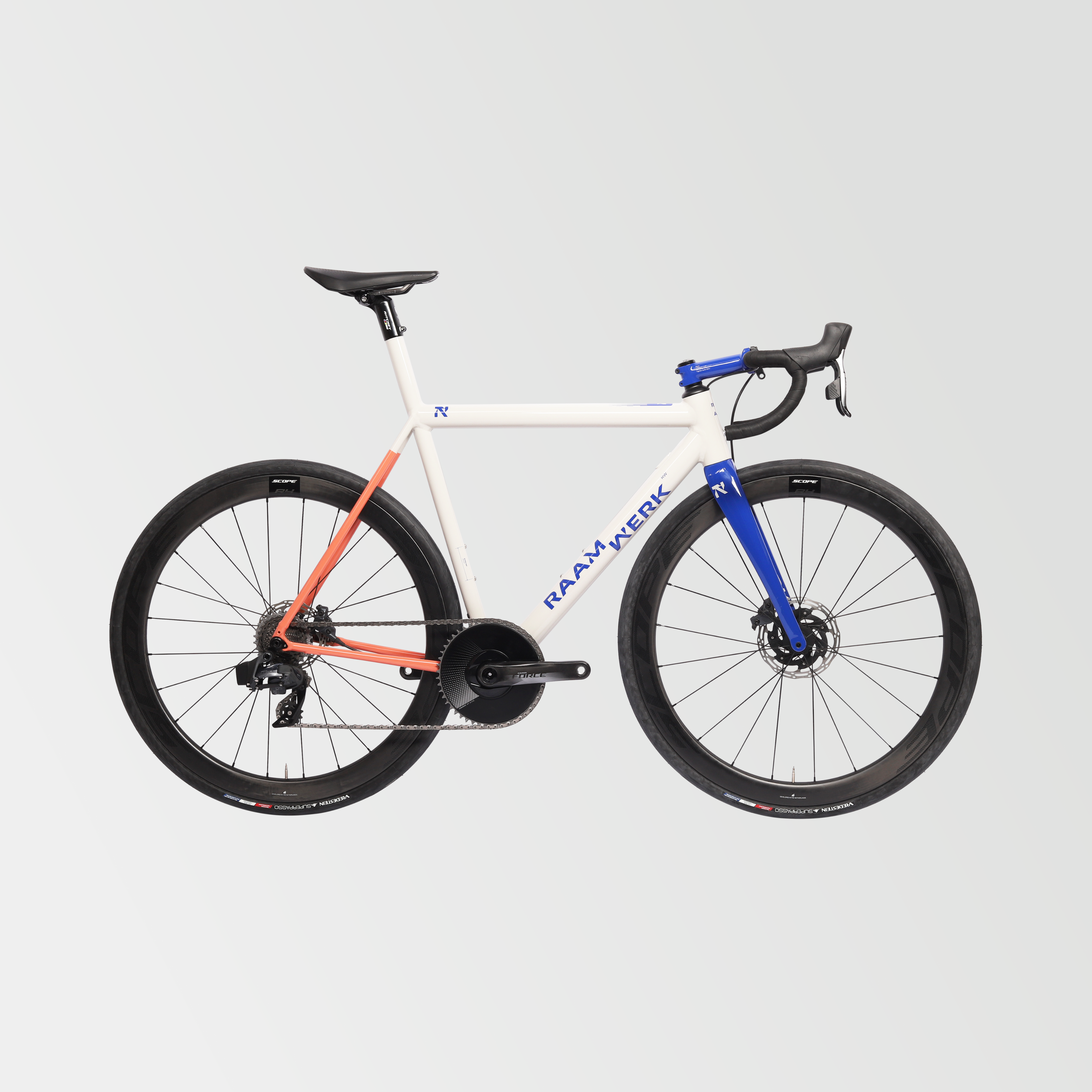

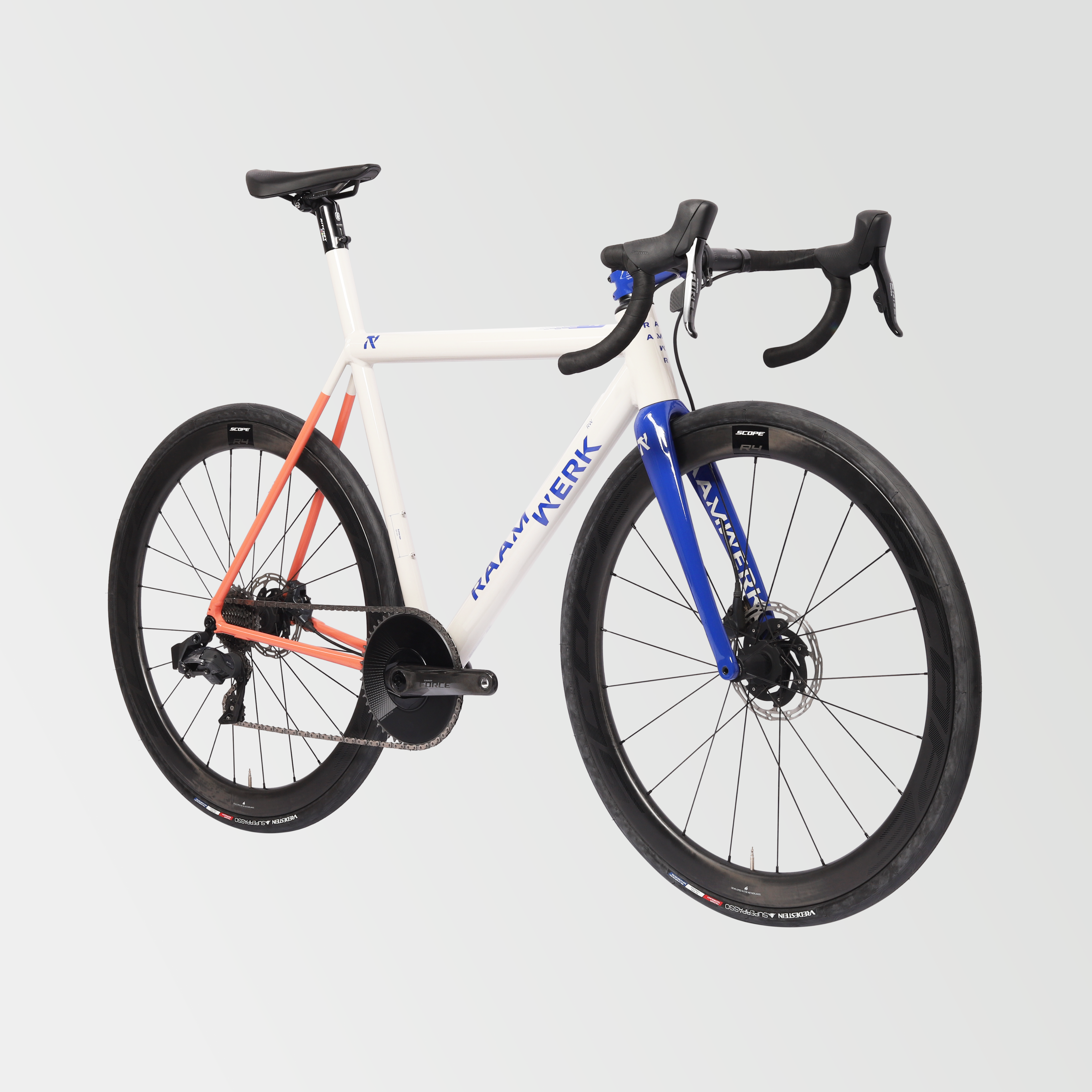

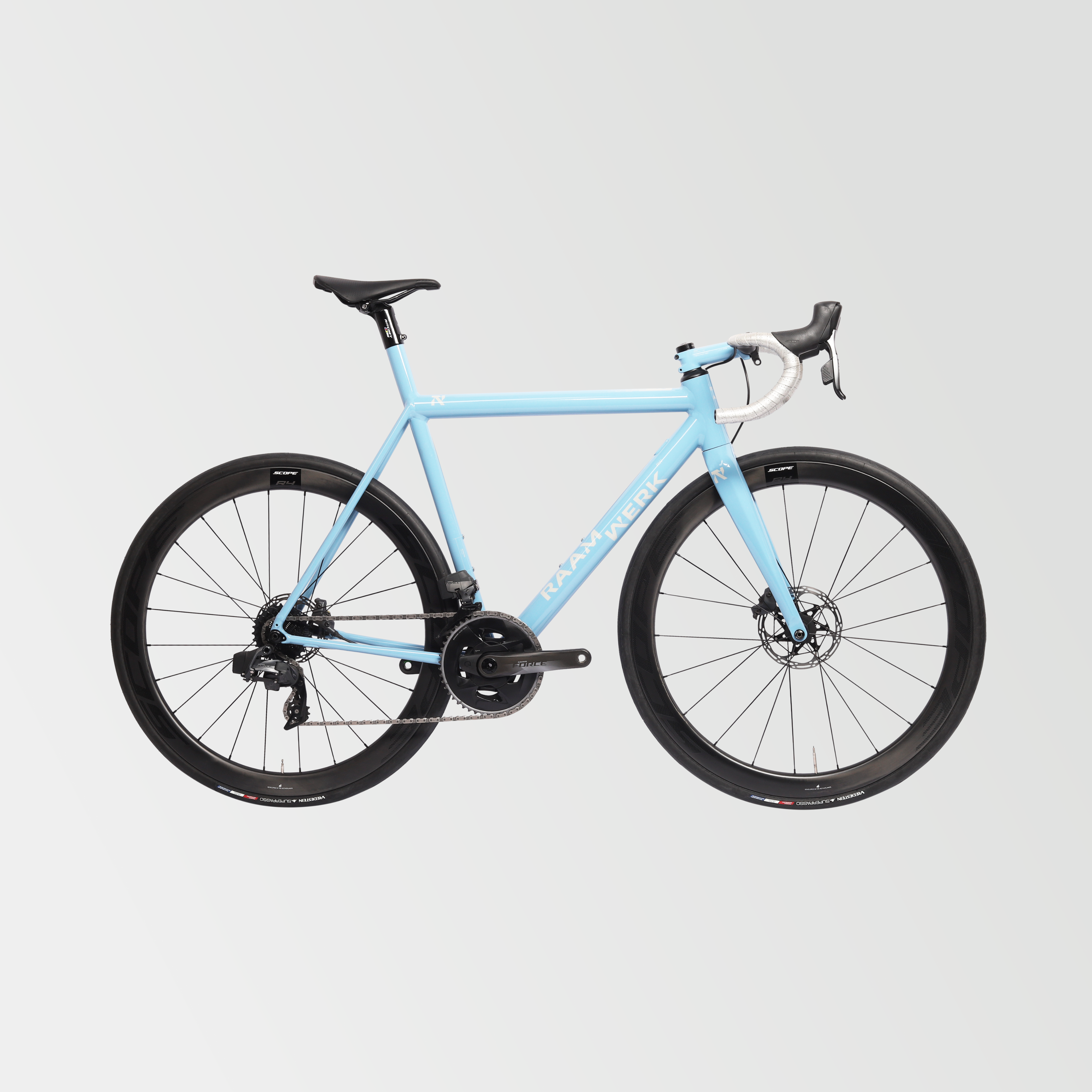

Raamwerk Disc RD5

1/10

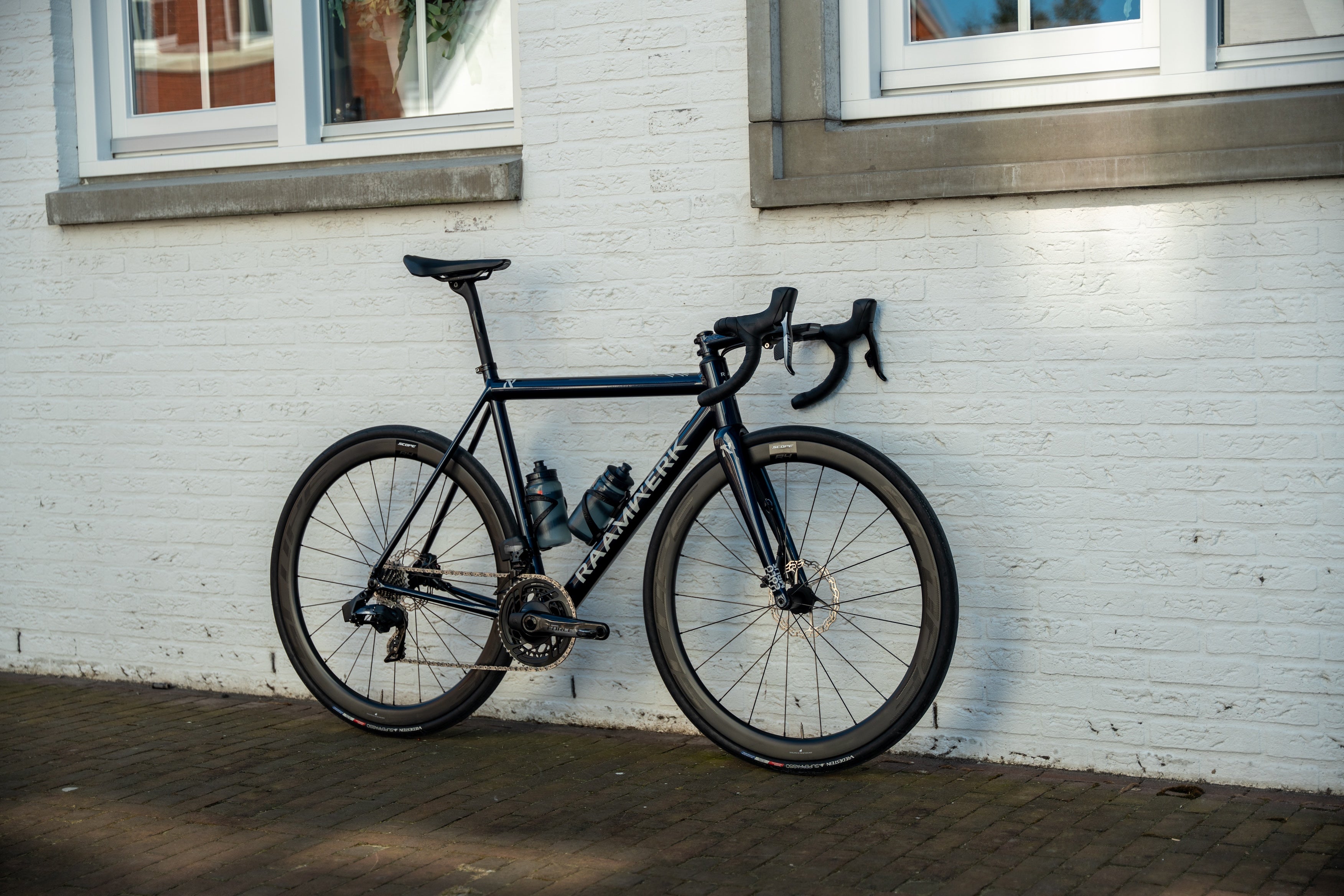

Raamwerk Disc RD5

€5.400,00 EUR

The optimal mix between high quality products and a decent pricepoint. The Sram Force AXS groupset gives you wireless shifting and plenty of stopping power. The Scope wheelset is top-notch, the Zipp Handlebar and bartape make handling it a dream.

Size XS S M M/L L XL

Color Blue Concept 12 Deep Space

Intentional design

Everything we do starts with why

Made with care

We believe in building better

A team with a goal

Real people making great products

The optimal mix between high quality products and a decent pricepoint. The Sram Force AXS groupset gives you wireless shifting and plenty of stopping power. The Scope wheelset is top-notch, the Zipp Handlebar and bartape make handling it a dream.

Spec list

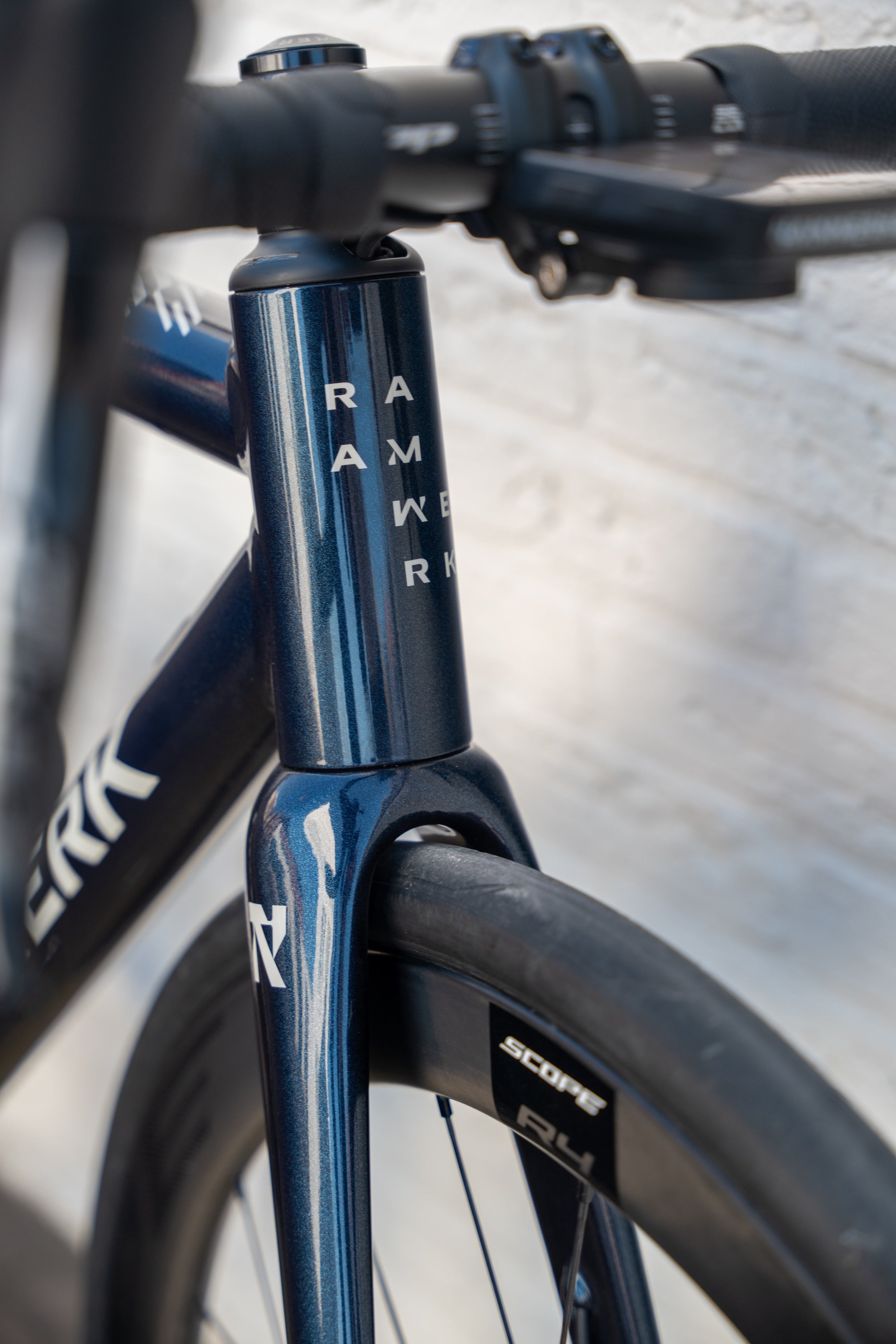

1	Frameset	Raamwerk Parallel AL7005
2	Groupset	SRAM Force AXS
3	Wheelset	Scope R Series

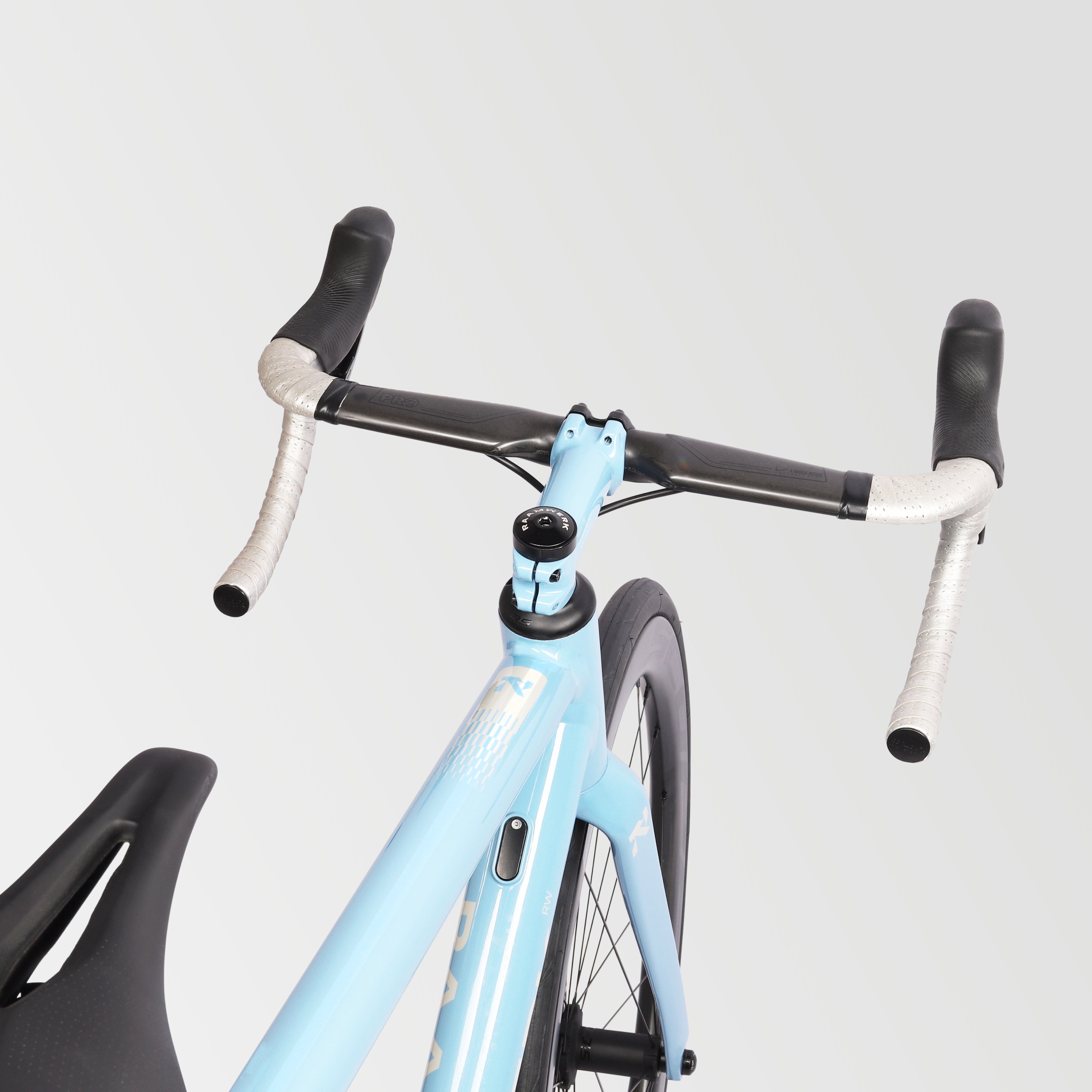

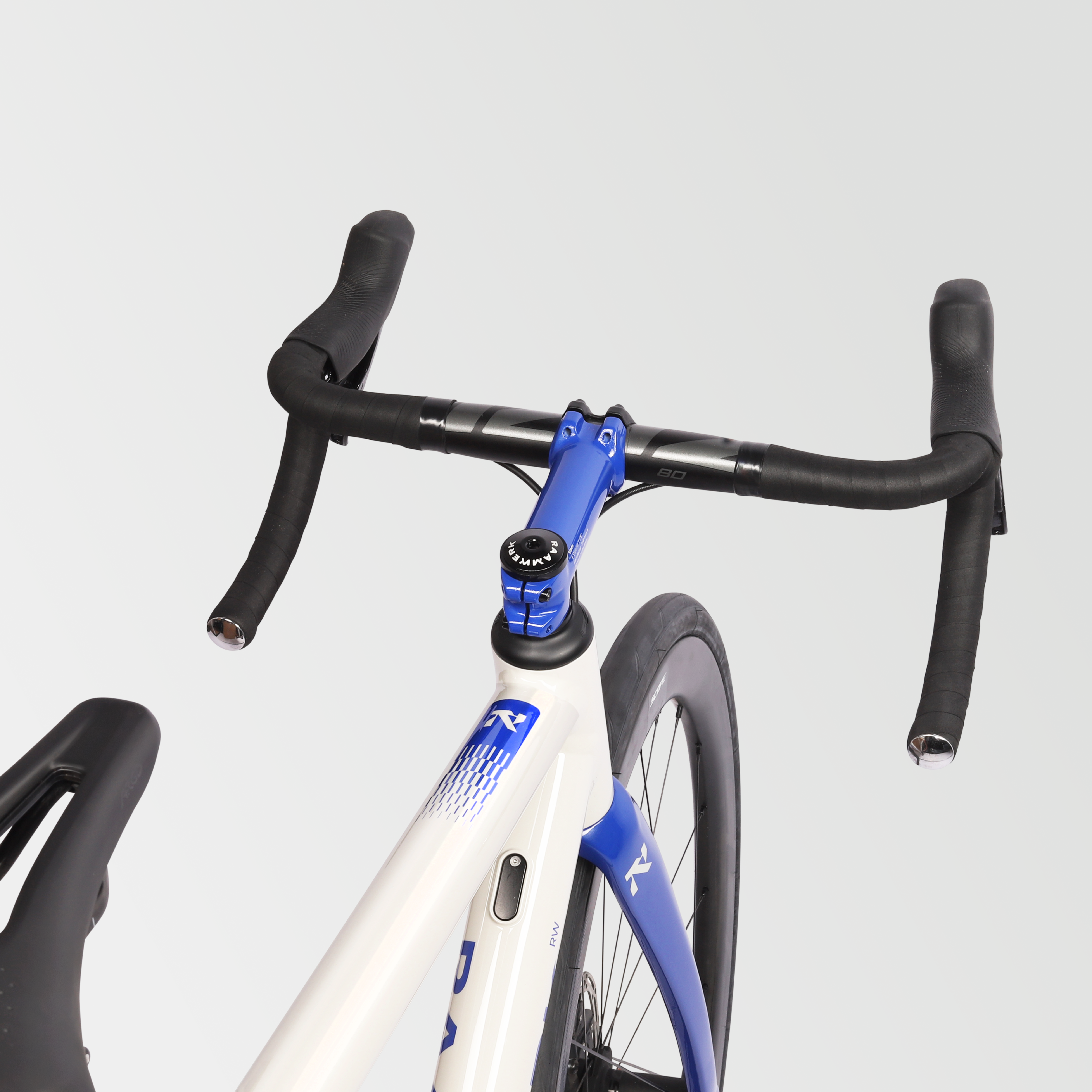

4	Handlebar	Zipp Service Course SL - [38 - 42 width, choice is yours]
5	Stem	Raamwerk aluminium length between 90 - 120 mm
6	Tyres	Vredestein Superpasso 28mm
7	Tubes	Tubolito Road with black valve
8	Handlebar tape	Raamwerk Black Grip

Optional upgrades

1	Water bottle cage	2x Elite Custom Road+ (+€32) or 2x Zipp Alumina (+€60) or 2x Zipp SL Speed (+€130)
2	Wheelset upgrade	Zipp Firecrest 404 (+150 euro) or Zipp 303S (-300 euro)
3	Powermeter upgrade	Left side crank or Spiderbased
4	Out-front mount	Raamwerk AL Stem out-front mount (€...)
5	Saddle	Let us know what you prefer

Race-ready geometry and all day comfort

High lateral stiffness for cornering with confidence

Effortless maintenance because of proven open industry standards

Technical documentation

All details

Whether you are looking for the geometry, build-up specifications or cable routing options, we've laid it out for you in our technical documentation.

See technical documentation

Customer support

Our dedicated team provides timely assistance, committed to addressing your queries.

Guaranteed satisfaction

Invest in our frameset with absolute confidence, backed by our 30-day satisfaction guarantee.

Crash replacement

Unfortunately crashes happen, and if they do we will help you to get back on your bike a.s.a.p.

	Frame size →	XS	S	M	M/L	L	XL
	Body length (roughly)	160	168	175	180	185	192
A	Stack	494	509	525	544	565	589
B	Reach	375	378	388	398	403	404
C	Seat tube angle	75	74	73.5	73.5	73	72.5
D	Seat tube C-C	450	490	510	530	550	580
E	Seat tube C-T*	750	790	810	830	850	880
F	Top tube (efffective)	505	525	545	560	575	590
G	Head tube angle	71	72.5	73	73	73.5	73.5
H	Head tube	110	120	135	155	175	200
I	BB drop	68	68	68	68	68	68
J	Wheel base	972	966	978	993	999	1008
K	Stand-over height	741	777	795	815	832	860
L	Fork offset	45	45	45	45	45	45
M	Fork length	375	375	375	375	375	375
N	Trail	70	61	58	58	55	54
